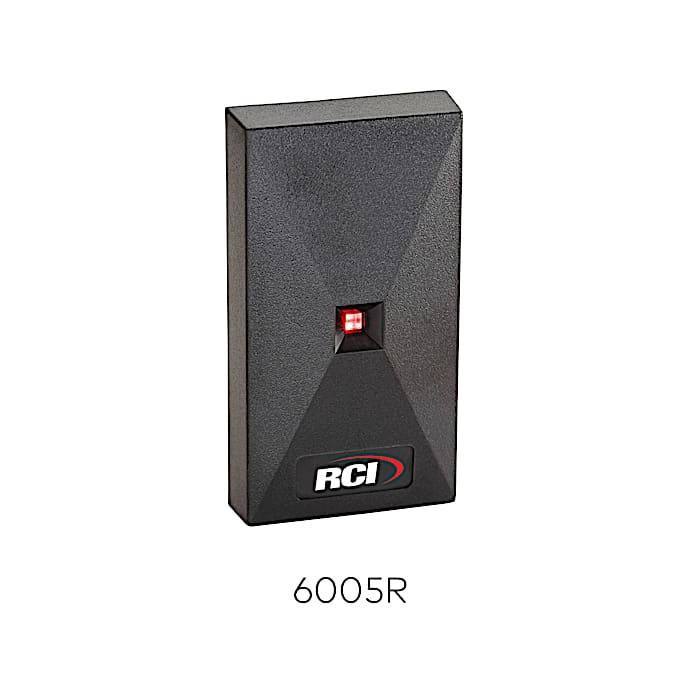

RCI 6005R Reader

The 6005R mullion proximity reader is designed slim for areas with minimal surface space to mount a reader. Using RFID technology, the RCI 6005R reader interfaces with a wide range of electronic access control systems by complying with the Wiegand communication protocol. The reader operates at a frequency of 125kHz and has a proximity read range up to 5”. The reader is intended for interior or exterior applications as all electronics are sealed in tamper and weather-resistant epoxy potting.

6005R Low Frequency Readers
  • Interface: 26-Bit, Wiegand Output, HID® & AWID® Supported
  • Warranty: Lifetime Limited Warranty
  • Environment: Rugged, Weather-Resistant Design
  • Access Control: Listed To UL 294
  • Energy: 75mA, +5 – 16VDC (Max at 12VDC)
  • Frequency & Range: 125kHz, Up to 5" (127mm) (Using 1326R Proximity Card (Clamshell) with 12VDC at the reader)

Product Details

  • Electronics are sealed in tamper and weather resistant epoxy potting
  • Includes black & beige snap-on covers
  • 26-Bit, Wiegand Output, HID® & AWID® Supported
  • Lifetime Limited Warranty
  • Rugged, Weather-Resistant Design
  • 75mA, +5 – 16VDC (Max at 12VDC)
  • Range Up to 5" (127mm)
  • Frequency of 125kHz(Using 1326R Proximity Card (Clamshell) with 12VDC at the reader)

Technical Details

Certifications

UL294 Listed for Access Control Unit Accessory, FCC, ICC, CE, ETL

Applications

  • Doors
  • Parking Barriers
  • Turnstiles
  • Gates
6005R Low Frequency Readers
